从业务角度解读Plastic Ominum(彼欧)EDI项目中的DELFOR报文一文中,已经对DELFOR报文中的业务值做了详细介绍。本文会从EDI技术实现角度出发,依照DELFOR报文在EDI系统中的解析流程进行详细的介绍。

1. EDI业务流

edi

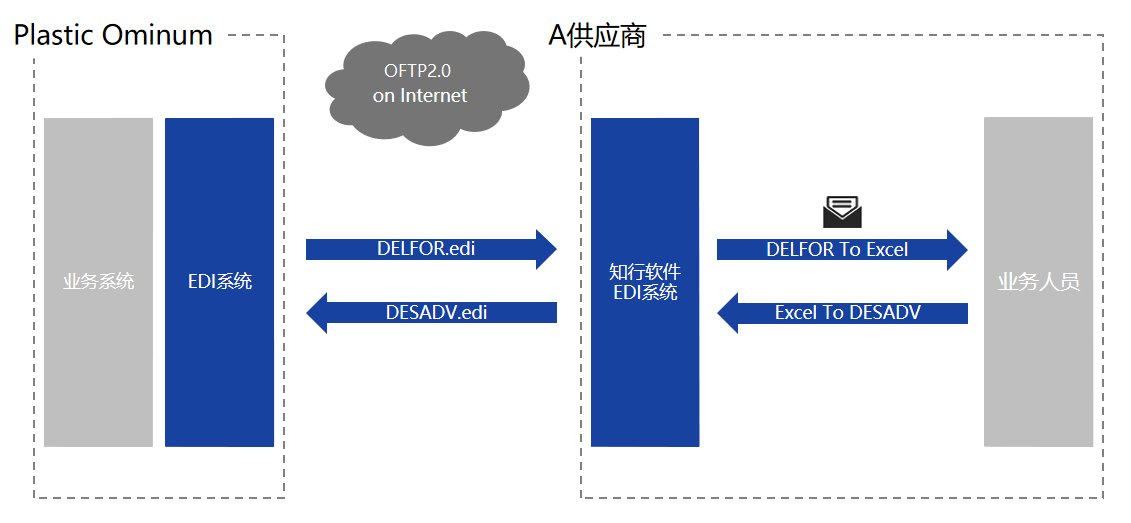

从上图中可以看出,EDI业务流中包含两种业务报文,分别是DELFOR(交付计划)和DESADV(发货通知)。实际业务中,首先是由Plastic Ominum(彼欧)发送DELFOR(交付计划)给A供应商,随后,A供应商会生产、发货等,在发货环节,A供应商需要发送DESADV(发货通知)给Plastic Ominum(彼欧),通知收货方发出的货物情况,以便Plastic Ominum(彼欧)做收货准备。

2. EDI工作流

接下来,看看在EDI系统中解析以及生成报文的过程。同业务流一样,在EDI工作流中,将传输方向不同的报文也独立开为接收报文和发送报文两个方向来做处理。项目中,客户选择的是Excel方式,即借助于EDI系统,将收到的DELFOR(交付计划)报文解析为Excel文件,之后发送给业务人员作进一步业务处理。相反地,发出的文件,首先由业务人员填写Excel空模板,完善DESADV(发货通知)业务中所需要的业务值,之后,经由EDI系统处理,生成符合EDIFACT标准的DESADV(发货通知)报文,并发出给Plastic Ominum(彼欧)。

edi

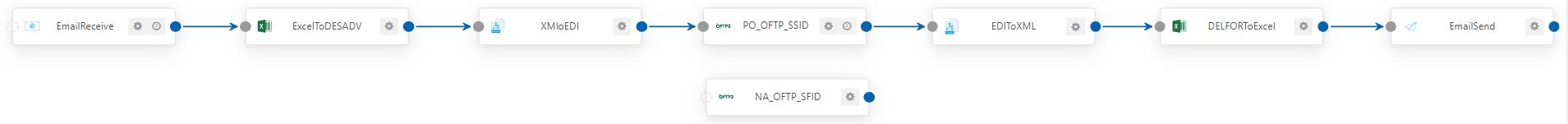

上图中,展示的是整个项目的EDI工作流情况。便于大家理解,以下分解为接收&解析DELFOR报文和生成&发出DESADV报文两部分,分别介绍。本文先对接收&解析DELFOR报文进行介绍,关于DESADV报文的详细介绍请参考“借助EDI系统实现Plastic Ominum(彼欧)EDI项目DESADV报文生成”一文。

2.1 接收&解析DELFOR报文工作流

如图所示,展示的是在知行EDI系统中接收&解析DELFOR报文工作流。

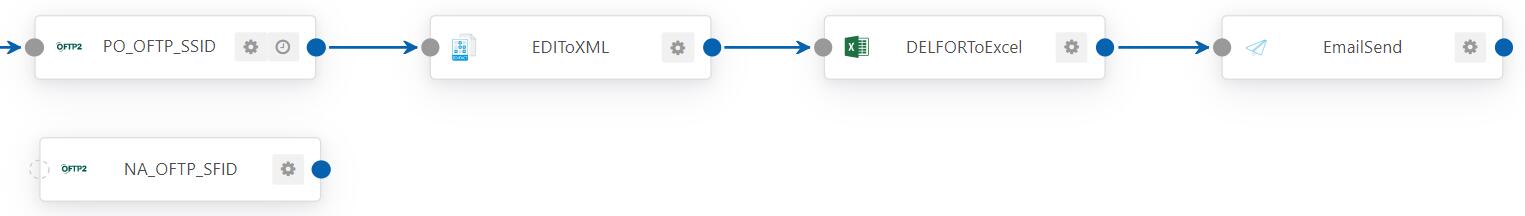

edi

  • PO_OFTP_SSID端口:通过互联网使用OFTP2.0传输协议与交易伙伴建立EDI连接,作为NA_OFTP_SFID端口的Routing Partner
  • NA_OFTP_SFID端口:通过互联网使用OFTP2.0传输协议与交易伙伴建立EDI连接
  • EDIToXMl端口:将EDIFACT标准的DELFOR(交付计划)报文转换为知行EDI系统标准的XML格式的交付计划文件
  • DELFORToExcel端口:将以上转换得到的知行EDI系统标准的XML格式的交付计划文件转换为Excel格式的交付计划文件
  • EmailSend端口:将以上得到的Excel格式的交付计划文件以邮件附件形式发送至A供应商的业务人员

可以看出,在知行EDI系统中,首先由负责建立OFTP连接的PO_OFTP_SSID端口和NA_OFTP_SFID端口收到DELFOR(交付计划)报文,之后依次经由EDIToXMl端口、DELFORToExcel端口完成文件格式转换,最终由EmailSend端口发送至业务人员。通过这些端口的配合,就完整地实现了接收并解析DELFOR报文的整个工作流。

3. DELFOR报文解析过程

将接收到的DELFOR报文转换为Excel格式交付计划,转换过程主要分为以下3个步骤。

3.1 EDIFACT标准的DELFOR报文

3.2 由8DELFOR报文转化得到标准XML格式交付计划

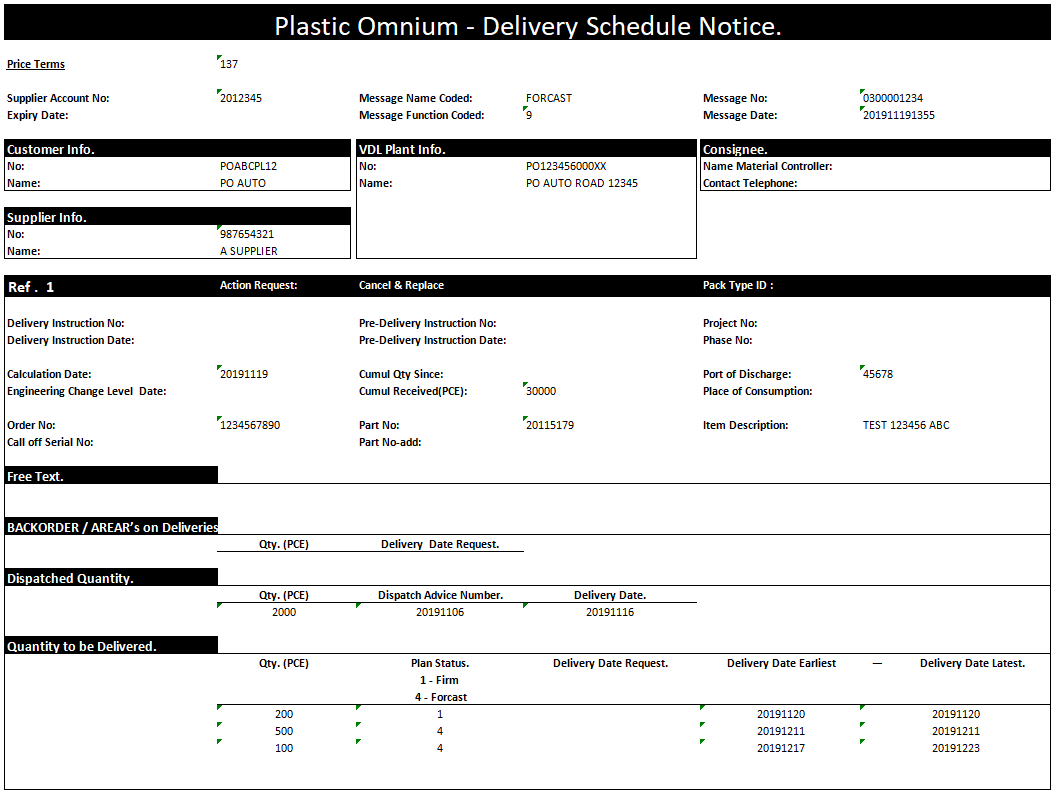

3.3 由标准XML格式交付计划转化得到Excel格式交付计划

edi
