博世BOSCH EDI DESADV发货通知详解

发表于 2022年10月14日作者知行软件

本文将从发送角度出发，带大家了解如何给博世BOSCH发送DESADV发货通知报文，并将其转换为博世BOSCH要求的EDIFACT格式。

在文章如何读懂EDIFACT报文？中，我们对EDIFACT已经做了详细的解读，大家可以以此为基础，开始深入了解 DESADV发货通知。

本文将对符合EDIFACT国际报文标准的DESADV发货通知报文进行详细解读，并且展示通过知行之桥EDI系统转换后得到的EDIFACT文件。

下图为BOSCH DESADV发货通知示例报文转换前及经过知行之桥EDI系统转换后的结果对比图。

利用知行之桥EDI系统可以将XML文件转换为符合国际标准的 EDIFACT文件，再通过EDI系统发送给BOSCH即可，企业可以从自己的业务系统中生成如下XML文件，或者将自己的业务数据填进如下的XML文件。每个字段的业务含义都已做了明确的注释。

1.博世BOSCH发货通知 XML 模板详解

<?xml version="1.0" encoding="utf8"?>
<EDI_DESADV>
  <Version>1.0.0</Version>
  <!--UNB-->
  <Mode RefDes="UNB11">T</Mode>
  <!--可填写T或者P，T为测试模式，P为生产模式-->
  <!--BGM-->
  <MessageNameCode RefDes="BGM0101">351</MessageNameCode>
  <!--可填写343/351，343为货运代理提货通知限定符，351为发货通知限定符-->
  <MessageName RefDes="BGM0104">KANBAN</MessageName>
  <!--与DELJIT相关的发货通知-->
  <MessageNumber RefDes="BGM0201">Test MessageNumber</MessageNumber>
  <!--发货编号-->
  <MessageFunctionCode RefDes="BGM03">9</MessageFunctionCode>
  <!--原始文件-->
  <DocumentMessageDateTimeInfo qualifier="DTM01/DTM0101:137">
    <!--DTM-->
    <DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>
    <!--文件日期-->
    <DateTimePeriodFormatQualifier RefDes="DTM0103">102</DateTimePeriodFormatQualifier>
    <!--文件日期格式限定符：102 CCYYMMDD,203 CCYYMMDDHHMM-->
  </DocumentMessageDateTimeInfo>
  <EstimatedArrivalDateTimeInfo qualifier="DTM01/DTM0101:132">
    <!--DTM-->
    <DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>
    <!--预计运输抵达日期-->
    <DateTimePeriodFormatQualifier RefDes="DTM0103">102</DateTimePeriodFormatQualifier>
    <!--预计运输抵达日期格式限定符：102 CCYYMMDD,203 CCYYMMDDHHMM-->
  </EstimatedArrivalDateTimeInfo>
  <ShipmentDateTimeRequestedInfo qualifier="DTM01/DTM0101:10">
    <!--DTM-->
    <DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>
    <!--指定的运输日期-->
    <DateTimePeriodFormatQualifier RefDes="DTM0103">102</DateTimePeriodFormatQualifier>
    <!--指定的运输日期格式限定符：102 CCYYMMDD,203 CCYYMMDDHHMM-->
  </ShipmentDateTimeRequestedInfo>
  <ConsignmentMeasurement qualifier="MEA01:AAX">
    <!--寄售测量-->
    <!--MEA-->
    <MeasurementDimentionCode RefDes="MEA0201">AAD</MeasurementDimentionCode>
    <!--可填写AAD/AAL/ABJ，AAD：托运总重量限定符；AAL:净重；ABJ：体积-->
    <UnitOfMeasurement RefDes="MEA0301">KGM</UnitOfMeasurement>
    <!--计量单位，可填写KGM/MTQ，KGM:千克；MTQ:立方米-->
    <MeasurementValue RefDes="MEA0302">Test MeasurementValue</MeasurementValue>
    <!--测量值，托运总重量/净重/体积-->
  </ConsignmentMeasurement>
  <Reference>
    <!--RFFLoop1-->
    <!--RFF-->
<TransportContractDocumentIdentifier RefDes="RFF0102" qualifier="RFF0101:AAS">Test TransportContractDocumentIdentifier</TransportContractDocumentIdentifier>
<!--运输合同文件ID-->
  </Reference>
    <Reference>
<UniqueGoodsShipmentIdentifier RefDes="RFF0102" qualifier="RFF0101:AVU">Test UniqueGoodsShipmentIdentifier</UniqueGoodsShipmentIdentifier>
<!--特殊货物运输ID-->
  </Reference>
  <Reference>
<TransportContractReferenceNumber RefDes="RFF0102" qualifier="RFF0101:AHI">Test TransportContractReferenceNumber</TransportContractReferenceNumber>
<!--运输合同参考号-->
  </Reference>
<BuyerInfo qualifier="NAD01:BY">
    <!--NADLoop1-->
    <!--NAD-->
    <PartyId RefDes="NAD0201">Test PartyId</PartyId>
    <!--买方ID-->
    <ListResponsibleAgencyCode RefDes="NAD0203">91</ListResponsibleAgencyCode>
    <!--可填写91/92，91：由卖方指定，92：由买方指定-->
    <PartyName RefDes="NAD0401">Test PartyName</PartyName>
    <!--买方名称-->
    <PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>
    <!--买方名称2-->
    <StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>
    <!--买方街道-->
    <CityName RefDes="NAD06">Test CityName</CityName>
    <!--买方城市名-->
    <CountrySubEntityDetail RefDes="NAD07">
      <NameCode RefDes="NAD0701">Test NameCode</NameCode>
      <!--买方城市详细信息-->
    </CountrySubEntityDetail>
    <PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>
    <!--买方邮编-->
    <CountryCode RefDes="NAD09">DE</CountryCode>
    <!--买方国家ID，例如：DE为德国-->
    <ContactInformation>
      <!--CTALoop1-->
      <!--CTA-->
      <ContactFunctionCode RefDes="CTA01">IC</ContactFunctionCode>
      <!--买方联系信息限定符-->
      <DepartmentOrEmployee RefDes="CTA02">
        <Identification RefDes="CTA0201">Test Identification</Identification>
        <!--买方联系ID-->
        <Name RefDes="CTA0202">Test Name</Name>
        <!--买方联系姓名-->
      </DepartmentOrEmployee>
      <CommunicationContact>
        <!--COM-->
        <CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>
        <!--买方联系地址ID-->
        <CommunicationMeansTypeCode RefDes="COM0102">TE</CommunicationMeansTypeCode>
        <!--买方联系方式限定符可填写：FX/TE/EM，FX:传真；TE:电话；EM:电子邮件-->
      </CommunicationContact>
    </ContactInformation>
  </BuyerInfo>
  <SellerInfo qualifier="NAD01:SE">
    <!--NADLoop1-->
    <!--NAD-->
    <PartyId RefDes="NAD0201">Test PartyId</PartyId>
    <!--卖方ID-->
    <ListResponsibleAgencyCode RefDes="NAD0203">92</ListResponsibleAgencyCode>
    <!--92：由买方指定-->
    <PartyName RefDes="NAD0401">Test PartyName</PartyName>
    <!--卖方名称-->
    <PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>
    <!--卖方名称2-->
    <StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>
    <!--卖方街道-->
    <CityName RefDes="NAD06">Test CityName</CityName>
    <!--卖方城市名-->
    <CountrySubEntityDetail RefDes="NAD07">
      <NameCode RefDes="NAD0701">Test NameCode</NameCode>
      <!--卖方国家或地区细分-->
    </CountrySubEntityDetail>
    <PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>
    <!--卖方邮编-->
    <CountryCode RefDes="NAD09">DE</CountryCode>
    <!--卖方国家代码，DE：德国-->
    <ContactInformation>
      <!--CTALoop1-->
      <!--CTA-->
      <ContactFunctionCode RefDes="CTA01">IC</ContactFunctionCode>
      <!--卖方联系信息限定符-->
      <DepartmentOrEmployee RefDes="CTA02">
        <Identification RefDes="CTA0201">Test Identification</Identification>
        <!--卖方联系ID-->
        <Name RefDes="CTA0202">Test Name</Name>
        <!--卖方联系姓名-->
      </DepartmentOrEmployee>
      <CommunicationContact>
        <!--COM-->
        <CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>
        <!--卖方联系信息ID-->
        <CommunicationMeansTypeCode RefDes="COM0102">TE</CommunicationMeansTypeCode>
        <!--卖方联系方式限定符，可填写：FX/TE/EM，FX:传真；TE:电话；EM:电子邮件-->
      </CommunicationContact>
    </ContactInformation>
  </SellerInfo>
  <SupplierInfo qualifier="NAD01:SU">
    <!--NADLoop1-->
    <!--NAD-->
    <PartyId RefDes="NAD0201">Test PartyId</PartyId>
    <!--供应商ID-->
    <ListResponsibleAgencyCode RefDes="NAD0203">92</ListResponsibleAgencyCode>
    <!--买方指定-->
    <PartyName RefDes="NAD0401">Test PartyName</PartyName>
    <!--供应商名称-->
    <PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>
    <!--供应商名称-->
    <StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>
    <!--供应商街道-->
    <CityName RefDes="NAD06">Test CityName</CityName>
    <!--供应商城市名-->
    <CountrySubEntityDetail RefDes="NAD07">
      <NameCode RefDes="NAD0701">Test NameCode</NameCode>
      <!--供应商国家或地区细分-->
    </CountrySubEntityDetail>
    <PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>
    <!--供应商邮编-->
    <CountryCode RefDes="NAD09">DE</CountryCode>
    <!--供应商国家代码，DE:德国-->
    <ContactInformation>
      <!--CTALoop1-->
      <!--CTA-->
      <ContactFunctionCode RefDes="CTA01">IC</ContactFunctionCode>
      <!--联系信息标识符-->
      <DepartmentOrEmployee RefDes="CTA02">
        <Identification RefDes="CTA0201">Test Identification</Identification>
        <!--供应商联系ID-->
        <Name RefDes="CTA0202">Test Name</Name>
        <!--供应商联系名称-->
      </DepartmentOrEmployee>
      <CommunicationContact>
        <!--COM-->
        <CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>
        <!--供应商联系地址ID-->
        <CommunicationMeansTypeCode RefDes="COM0102">TE</CommunicationMeansTypeCode>
      </CommunicationContact>
      <!--供应商联系方式限定符可填写：FX/TE/EM，FX:传真；TE:电话；EM:电子邮件-->
    </ContactInformation>
  </SupplierInfo>
  <ShipToInfo qualifier="NAD01:ST">
    <!--NADLoop1-->
    <!--NAD-->
    <PartyId RefDes="NAD0201">Test PartyId</PartyId>
    <!--收货方ID-->
    <ListResponsibleAgencyCode RefDes="NAD0203">92</ListResponsibleAgencyCode>
    <!--由买方指定-->
    <PartyName RefDes="NAD0401">Test PartyName</PartyName>
    <!--收货方名称-->
    <PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>
    <!--收货方名称1-->
    <StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>
    <!--收货方街道-->
    <CityName RefDes="NAD06">Test CityName</CityName>
    <!--收货方城市名-->
    <CountrySubEntityDetail RefDes="NAD07">
      <NameCode RefDes="NAD0701">Test NameCode</NameCode>
      <!--收货方国家或地区细分-->
    </CountrySubEntityDetail>
    <PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>
    <!--收货方邮编-->
    <CountryCode RefDes="NAD09">DE</CountryCode>
    <!--收货方国家代码，DE:德国-->
    <PlaceOrPortOfDischarge qualifier="LOC01:11">
      <!--LOC-->
      <LocationIdentification RefDes="LOC02">
        <LocationID RefDes="LOC0201">Test LocationID</LocationID>
        <!--卸货点地址ID-->
      </LocationIdentification>
    </PlaceOrPortOfDischarge>
    <ContactInformation>
      <!--CTALoop1-->
      <!--CTA-->
      <ContactFunctionCode RefDes="CTA01">IC</ContactFunctionCode>
      <!--收货方联系信息限定符-->
      <DepartmentOrEmployee RefDes="CTA02">
        <Identification RefDes="CTA0201">Test Identification</Identification>
        <!--收货方联系明细-->
        <Name RefDes="CTA0202">Test Name</Name>
        <!--收货方联系名称-->
      </DepartmentOrEmployee>
      <CommunicationContact>
        <!--COM-->
        <CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>
        <!--收货方联系地址ID-->
        <CommunicationMeansTypeCode RefDes="COM0102">TE</CommunicationMeansTypeCode>
        <!--收货方联系方式限定符可填写：FX/TE/EM，FX:传真；TE:电话；EM:电子邮件-->
      </CommunicationContact>
    </ContactInformation>
  </ShipToInfo>
  <ShipFromInfo qualifier="NAD01:SF">
    <!--NADLoop1-->
    <!--NAD-->
    <PartyId RefDes="NAD0201">Test PartyId</PartyId>
    <!--发货方ID-->
    <ListResponsibleAgencyCode RefDes="NAD0203">92</ListResponsibleAgencyCode>
    <!--由买方指定-->
    <PartyName RefDes="NAD0401">Test PartyName</PartyName>
    <!--发货方名称-->
    <PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>
    <!--发货方名称2-->
    <StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>
    <!--发货方街道-->
    <CityName RefDes="NAD06">Test CityName</CityName>
    <!--发货方城市-->
    <CountrySubEntityDetail RefDes="NAD07">
      <NameCode RefDes="NAD0701">Test NameCode</NameCode>
      <!--发货方国家或地区细分-->
    </CountrySubEntityDetail>
    <PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>
    <!--发货方邮编-->
    <CountryCode RefDes="NAD09">DE</CountryCode>
    <!--发货方国家代码，DE:德国-->
    <ContactInformation>
      <!--CTALoop1-->
      <!--CTA-->
      <ContactFunctionCode RefDes="CTA01">IC</ContactFunctionCode>
      <!--发货方联系信息限定符-->
      <DepartmentOrEmployee RefDes="CTA02">
        <Identification RefDes="CTA0201">Test Identification</Identification>
        <!--发货方联系信息-->
        <Name RefDes="CTA0202">Test Name</Name>
        <!--发货方联系名称-->
      </DepartmentOrEmployee>
      <CommunicationContact>
        <!--COM-->
        <CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>
        <!--发货方联系地址-->
        <CommunicationMeansTypeCode RefDes="COM0102">TE</CommunicationMeansTypeCode>
        <!--发货方联系方式限定符可填写：FX/TE/EM，FX:传真；TE:电话；EM:电子邮件-->
      </CommunicationContact>
    </ContactInformation>
  </ShipFromInfo>
  <FreightForwarderInfo qualifier="NAD01:FW">
    <!--NADLoop1-->
    <!--NAD-->
    <PartyId RefDes="NAD0201">Test PartyId</PartyId>
    <!--货运转运商ID-->
    <PartyName RefDes="NAD0401">Test PartyName</PartyName>
    <!--货运转运商名称-->
    <PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>
    <!--货运转运商名称-->
    <StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>
    <!--货运转运商街道-->
    <CityName RefDes="NAD06">Test CityName</CityName>
    <!--货运转运商城市名-->
    <CountrySubEntityDetail RefDes="NAD07">
      <NameCode RefDes="NAD0701">Test NameCode</NameCode>
      <!--货运转运商国家或地区细分-->
    </CountrySubEntityDetail>
    <PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>
    <!--货运转运商邮编-->
    <CountryCode RefDes="NAD09">DE</CountryCode>
    <!--货运转运商国家代码，DE:德国-->
    <ContactInformation>
      <!--CTALoop1-->
      <!--CTA-->
      <ContactFunctionCode RefDes="CTA01">IC</ContactFunctionCode>
      <!--货运转运商联系信息限定符-->
      <DepartmentOrEmployee RefDes="CTA02">
        <Identification RefDes="CTA0201">Test Identification</Identification>
        <!--货运转运商联系ID-->
        <Name RefDes="CTA0202">Test Name</Name>
        <!--货运转运商联系名称-->
      </DepartmentOrEmployee>
      <CommunicationContact>
        <!--COM-->
        <CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>
        <!--货运转运商联系地址ID-->
        <CommunicationMeansTypeCode RefDes="COM0102">TE</CommunicationMeansTypeCode>
        <!--货运转运商联系方式限定符可填写：FX/TE/EM，FX:传真；TE:电话；EM:电子邮件-->
      </CommunicationContact>
    </ContactInformation>
  </FreightForwarderInfo>
  <EquipmentDetails>
    <!--EQDLoop1-->
    <!--EQD-->
    <EquipmentTypeCode RefDes="EQD01">TE</EquipmentTypeCode>
    <!--装运限定符，可填写：TE/CN/ZZZ TE:拖车；CN：集装箱；ZZZ：混合装运-->
    <EquipmentIdentification RefDes="EQD02">
      <EquipmentId RefDes="EQD0201">Test EquipmentId</EquipmentId>
      <!--装运ID-->
    </EquipmentIdentification>
  </EquipmentDetails>
  <Level>
    <!--CPSLoop1-->
    <!--CPS-->
    <PackagingLevelCode RefDes="CPS03">1</PackagingLevelCode>
    <!--包装水平，可填写：1/4，1：内包装，4：无包装-->
    <PackageInformation>
      <!--PACLoop1-->
      <!--PAC-->
      <PackageNumber RefDes="PAC01">123456</PackageNumber>
      <!--包装编号-->
      <PackageTypeIdentification RefDes="PAC04">
        <ItemDescriptionTypeCode RefDes="PAC0401">F</ItemDescriptionTypeCode>
        <!--包装类型编码， F：自由格式-->
        <TypeOfPackages RefDes="PAC0402">Test TypeOfPackages</TypeOfPackages>
        <!--买方包装类型编码-->
        <ItemNumberTypeCode RefDes="PAC0403">IN</ItemNumberTypeCode>
        <!--物料类型编码，IN：买方物料编号-->
        <TypeOfPackages RefDes="PAC0404">Test TypeOfPackages</TypeOfPackages>
        <!--供应商包装类型编码-->
        <ItemNumberTypeCode2 RefDes="PAC0405">SA</ItemNumberTypeCode2>
        <!--供应商货号编码-->
      </PackageTypeIdentification>
      <PackageMeasurement qualifier="MEA01:AAY">
        <!--MEA-->
        <MeasurementDimentionCode RefDes="MEA0201">G</MeasurementDimentionCode>
        <!--测量类型编码，可填写：G/AAL/LN/WD/HT，G:毛重，AAL:净重；LN:长度；WD:宽度；HT：宽度-->
        <UnitOfMeasurement RefDes="MEA0301">KGM</UnitOfMeasurement>
        <!--测量单位，可填写：KGM/CMT，KGM:千克；CMT:厘米-->
        <MeasurementValue RefDes="MEA0302">Test MeasurementValue</MeasurementValue>
        <!--测量值-->
      </PackageMeasurement>
      <QuantityDetail>
        <!--QTY-->
        <MaximumStackability RefDes="QTY0102" qualifier="QTY0101:171">Test MaximumStackability</MaximumStackability>
        <!--最大可堆叠数量-->
        <QuantityPerPack RefDes="QTY0102" qualifier="QTY0101:52">Test QuantityPerPack</QuantityPerPack>
        <!--每个包装的数量-->
        <MeasureUnitQualifier RefDes="QTY0103">EA</MeasureUnitQualifier>
        <!--测量单位：每个-->
      </QuantityDetail>
      <PackageIdentification>
        <!--PCILoop1-->
        <!--PCI-->
        <MarkingInstructionsCode RefDes="PCI01">17</MarkingInstructionsCode>
        <!--17：卖方说明-->
        <ShippingMarksDescription RefDes="PCI0201">Test ShippingMarksDescription</ShippingMarksDescription>
        <!--卖方运输说明-->
        <MarkingTypeCode RefDes="PCI0401">G</MarkingTypeCode>
        <!--标记类型编码，可填写：G/M/S，G:混拖;M:整托;S:散箱-->
        <ListResponsibleAgencyCode RefDes="PCI0403">5</ListResponsibleAgencyCode>
        <!--5:ISO国际标准化组织-->
        <Reference>
          <!--RFF-->
          <OuterpackagingUnitIdentification RefDes="RFF0102" qualifier="RFF0101:ACI">Test OuterpackagingUnitIdentification</OuterpackagingUnitIdentification>
          <!--外包装ID，使用GTL 或 SSCC18 标签-->
        </Reference>
        <ProductionManufactureDateInfo qualifier="DTM01/DTM0101:94">
          <!--DTM-->
          <ProductionManufactureDate RefDes="DTM0102">Test DateOrTimeOrPeriod</ProductionManufactureDate>
          <!--生产日期-->
          <DateTimePeriodFormatQualifier RefDes="DTM0103">102</DateTimePeriodFormatQualifier>
          <!--日期格式-->
        </ProductionManufactureDateInfo>
        <ValueList qualifier="GIR01:7">
          <!--GIRLoop1-->
          <!--GIR-->
          <LevelNumber RefDes="GIR0201" qualifier="GIR02/GIR0202:AM">1</LevelNumber>
          <!--可填入1/2, 1表示最小包装，2表示非最小包装-->
        </ValueList>
        <MarkingLabelNumber qualifier="GIN01:ML">
          <!--GINLoop1-->
          <!--GIN-->
          <IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>
          <!--标签号-->
        </MarkingLabelNumber>
        <KanbanCardIdentifier qualifier="GIN01:AL">
          <!--GINLoop1-->
          <!--GIN-->
          <IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>
          <!--看板卡号-->
        </KanbanCardIdentifier>
      </PackageIdentification>
    </PackageInformation>
    <Item>
      <!--LINLoop1-->
      <!--LIN-->
      <LineItemNumber RefDes="LIN01">Test LineItemNumber</LineItemNumber>
      <!--物料行号-->
      <BuyerItemNumber RefDes="LIN0301" qualifier="LIN0302:IN">Test BuyerItemNumber</BuyerItemNumber>
      <!--买方物料号-->
      <AdditionalProductIdentification>
        <!--PIA-->
        <ProductIdFunctionCode RefDes="PIA01">1</ProductIdFunctionCode>
        <!--补充产品ID限定符-->
        <ItemNumberIdentification RefDes="PIA02">
          <SupplierArticleNumber RefDes="PIA0201" qualifier="PIA0202:SA">Test SupplierArticleNumber</SupplierArticleNumber>
          <!--供应商货号-->
        </ItemNumberIdentification>
        <ItemNumberIdentification2 RefDes="PIA03">
          <EngineeringChangeLevel RefDes="PIA0301" qualifier="PIA0302:EC">Test EngineeringChangeLevel</EngineeringChangeLevel>
          <!--工程修改级别-->
        </ItemNumberIdentification2>
        <ItemNumberIdentification3 RefDes="PIA04">
          <BatchNumber RefDes="PIA0401" qualifier="PIA0402:NB">Test BatchNumber</BatchNumber>
          <!--批号-->
        </ItemNumberIdentification3>
        <ItemNumberIdentification4 RefDes="PIA05">
          <SoftwareRevisionNumber RefDes="PIA0501" qualifier="PIA0502:AG">Test SoftwareRevisionNumber</SoftwareRevisionNumber>
          <!--软件修正号-->
        </ItemNumberIdentification4>
        <ItemNumberIdentification5 RefDes="PIA06">
          <TechnicalPhase RefDes="PIA0601" qualifier="PIA0602:BT">Test TechnicalPhase</TechnicalPhase>
          <!--硬件修正号-->
        </ItemNumberIdentification5>
      </AdditionalProductIdentification>
      <QuantityDetail>
        <!--QTY-->
        <DespatchQuantity RefDes="QTY0102" qualifier="QTY0101:12">Test DespatchQuantity</DespatchQuantity>
        <!--发货数量-->
        <MeasureUnitQualifier RefDes="QTY0103">EA</MeasureUnitQualifier>
        <!--测量单位，每个-->
      </QuantityDetail>
      <AdditionalInformation>
        <!--ALI-->
        <CountryOfOriginIdentifier RefDes="ALI01">DE</CountryOfOriginIdentifier>
        <!--原产国-->
      </AdditionalInformation>
      <SerialNumber qualifier="GIN01:BN">
        <!--GIN-->
        <IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>
        <!--序列号-->
      </SerialNumber>
      <ExpiryDateInfo qualifier="DTM01/DTM0101:36">
        <!--DTM-->
        <DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>
        <!--限用日期-->
        <DateTimePeriodFormatQualifier RefDes="DTM0103">102</DateTimePeriodFormatQualifier>
      </ExpiryDateInfo>
      <ProductionManufactureDateInfo qualifier="DTM01/DTM0101:94">
        <!--DTM-->
        <DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>
        <!--生产/制造日期-->
        <DateTimePeriodFormatQualifier RefDes="DTM0103">102</DateTimePeriodFormatQualifier>
      </ProductionManufactureDateInfo>
      <ManufacturerOfGoodsInfo qualifier="NAD01:MF">
        <!--NAD-->
        <PartyId RefDes="NAD0201">Test PartyId</PartyId>
        <!--货物制造商ID-->
      </ManufacturerOfGoodsInfo>
<Reference>
<!--RFFLoop3-->
<!--RFF-->
    <PurchaseOrderNumber RefDes="RFF0102" qualifier="RFF0101:ON">Test PurchaseOrderNumber</PurchaseOrderNumber>
    <!--订单编号-->
    <LineNumber RefDes="RFF0103">Test LineNumber</LineNumber>
    <!--物料行号-->
</Reference>
<Reference>
    <InvoiceNumber RefDes="RFF0102" qualifier="RFF0101:IV">Test InvoiceNumber</InvoiceNumber>
     <!--发票号-->
</Reference>
<!--RFF-->
<Reference>
    <DeliveryScheduleNumber RefDes="RFF0102" qualifier="RFF0101:AAN">Test DeliveryScheduleNumber</DeliveryScheduleNumber>
    <!--交付计划编号-->
</Reference>
<Reference>
    <EventReferenceNumber RefDes="RFF0102" qualifier="RFF0101:AIV">Test EventReferenceNumber</EventReferenceNumber>
    <!--事件参考号-->
 </Reference>
<PlaceOrPortOfDischarge qualifier="LOC01:11">
        <!--LOCLoop2-->
        <!--LOC-->
        <LocationIdentification RefDes="LOC02">
          <LocationID RefDes="LOC0201">Test LocationID</LocationID>
          <!--卸货地ID-->
        </LocationIdentification>
      </PlaceOrPortOfDischarge>
      <Warehouse qualifier="LOC01:18">
        <!--LOCLoop2-->
        <!--LOC-->
        <LocationIdentification RefDes="LOC02">
          <LocationID RefDes="LOC0201">Test LocationID</LocationID>
          <!--仓库位置ID-->
        </LocationIdentification>
      </Warehouse>
      <AdditionalInternalDestination qualifier="LOC01:159">
        <!--LOCLoop2-->
        <!--LOC-->
        <LocationIdentification RefDes="LOC02">
          <LocationID RefDes="LOC0201">Test LocationID</LocationID>
          <!--额外的内部目的地ID-->
        </LocationIdentification>
      </AdditionalInternalDestination>
    </Item>
    <Level>
      <!--CPSLoop2-->
      <!--CPS-->
      <PackagingLevelCode RefDes="CPS03">2</PackagingLevelCode>
      <!--包装水平：中层-->
      <PackageInformation>
        <!--PACLoop1-->
        <!--PAC-->
        <PackageNumber RefDes="PAC01">123456</PackageNumber>
        <!--包装号-->
        <PackageTypeIdentification RefDes="PAC04">
          <ItemDescriptionTypeCode RefDes="PAC0401">F</ItemDescriptionTypeCode>
          <!--自由格式限定符-->
          <TypeOfPackages RefDes="PAC0402">Test TypeOfPackages</TypeOfPackages>
          <!--包装类型-->
          <ItemNumberTypeCode RefDes="PAC0403">IN</ItemNumberTypeCode>
          <!--买方物料号限定符-->
          <TypeOfPackages RefDes="PAC0404">Test TypeOfPackages</TypeOfPackages>
          <!--包装类型-->
          <ItemNumberTypeCode2 RefDes="PAC0405">SA</ItemNumberTypeCode2>
          <!--供应商产品编号-->
        </PackageTypeIdentification>
        <PackageMeasurement qualifier="MEA01:AAY">
          <!--MEA-->
          <MeasurementDimentionCode RefDes="MEA0201">G</MeasurementDimentionCode>
          <!--测量类型编码，可填写：G/AAL/LN/WD/HT，G:毛重，AAL:净重；LN:长度；WD:宽度；HT：宽度-->
          <UnitOfMeasurement RefDes="MEA0301">KGM</UnitOfMeasurement>
          <!--测量单位，可填写：KGM/CMT，KGM:千克；CMT:厘米-->
          <MeasurementValue RefDes="MEA0302">Test MeasurementValue</MeasurementValue>
          <!--测量值-->
        </PackageMeasurement>
        <QuantityDetail>
          <!--QTY-->
          <MaximumStackability RefDes="QTY0102" qualifier="QTY0101:171">Test MaximumStackability</MaximumStackability>
          <!--最大堆积量-->
          <NumberofPackagesInHandlingUnit RefDes="QTY0102" qualifier="QTY0101:189">Test NumberofPackagesInHandlingUnit</NumberofPackagesInHandlingUnit>
        </QuantityDetail>
        <!--处理单元中的包裹数量-->
        <PackageIdentification>
          <!--PCILoop1-->
          <!--PCI-->
          <MarkingInstructionsCode RefDes="PCI01">17</MarkingInstructionsCode>
          <!--17：卖方说明-->
          <ShippingMarksDescription RefDes="PCI0201">Test ShippingMarksDescription</ShippingMarksDescription>
          <!--卖方运输说明-->
          <MarkingTypeCode RefDes="PCI0401">G</MarkingTypeCode>
           <!--标记类型编码，可填写：G/M，G:混拖;M:整托-->
          <ListResponsibleAgencyCode RefDes="PCI0403">5</ListResponsibleAgencyCode>
          <!--5:ISO国际标准化组织-->
          <MarkingLabelNumber qualifier="GIN01:ML">
            <!--GINLoop1-->
            <!--GIN-->
            <IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>
            <!--标签号-->
          </MarkingLabelNumber>
          <SerialShippingContainerCode qualifier="GIN01:AW">
            <!--GINLoop1-->
            <!--GIN-->
            <IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>
            <!--外包装中包含的包件的ID-->
          </SerialShippingContainerCode>
        </PackageIdentification>
      </PackageInformation>
    </Level>
  </Level>
</EDI_DESADV>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

<?xml version="1.0" encoding="utf8"?>

<EDI_DESADV>

<MessageName RefDes="BGM0104">KANBAN</MessageName>

<MessageNumber RefDes="BGM0201">Test MessageNumber</MessageNumber>

<DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>

</DocumentMessageDateTimeInfo>

<DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>

</EstimatedArrivalDateTimeInfo>

<DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>

</ShipmentDateTimeRequestedInfo>

<MeasurementValue RefDes="MEA0302">Test MeasurementValue</MeasurementValue>

</ConsignmentMeasurement>

<TransportContractDocumentIdentifier RefDes="RFF0102" qualifier="RFF0101:AAS">Test TransportContractDocumentIdentifier</TransportContractDocumentIdentifier>

</Reference>

<UniqueGoodsShipmentIdentifier RefDes="RFF0102" qualifier="RFF0101:AVU">Test UniqueGoodsShipmentIdentifier</UniqueGoodsShipmentIdentifier>

</Reference>

<TransportContractReferenceNumber RefDes="RFF0102" qualifier="RFF0101:AHI">Test TransportContractReferenceNumber</TransportContractReferenceNumber>

</Reference>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

<PartyName RefDes="NAD0401">Test PartyName</PartyName>

<PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>

<StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>

<CityName RefDes="NAD06">Test CityName</CityName>

<NameCode RefDes="NAD0701">Test NameCode</NameCode>

</CountrySubEntityDetail>

<PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>

<Identification RefDes="CTA0201">Test Identification</Identification>

</DepartmentOrEmployee>

<CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>

</CommunicationContact>

</ContactInformation>

</BuyerInfo>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

<PartyName RefDes="NAD0401">Test PartyName</PartyName>

<PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>

<StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>

<CityName RefDes="NAD06">Test CityName</CityName>

<NameCode RefDes="NAD0701">Test NameCode</NameCode>

</CountrySubEntityDetail>

<PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>

<Identification RefDes="CTA0201">Test Identification</Identification>

</DepartmentOrEmployee>

<CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>

</CommunicationContact>

</ContactInformation>

</SellerInfo>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

<PartyName RefDes="NAD0401">Test PartyName</PartyName>

<PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>

<StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>

<CityName RefDes="NAD06">Test CityName</CityName>

<NameCode RefDes="NAD0701">Test NameCode</NameCode>

</CountrySubEntityDetail>

<PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>

<Identification RefDes="CTA0201">Test Identification</Identification>

</DepartmentOrEmployee>

<CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>

</CommunicationContact>

</ContactInformation>

</SupplierInfo>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

<PartyName RefDes="NAD0401">Test PartyName</PartyName>

<PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>

<StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>

<CityName RefDes="NAD06">Test CityName</CityName>

<NameCode RefDes="NAD0701">Test NameCode</NameCode>

</CountrySubEntityDetail>

<PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>

<LocationID RefDes="LOC0201">Test LocationID</LocationID>

</LocationIdentification>

</PlaceOrPortOfDischarge>

<Identification RefDes="CTA0201">Test Identification</Identification>

</DepartmentOrEmployee>

<CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>

</CommunicationContact>

</ContactInformation>

</ShipToInfo>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

<PartyName RefDes="NAD0401">Test PartyName</PartyName>

<PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>

<StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>

<CityName RefDes="NAD06">Test CityName</CityName>

<NameCode RefDes="NAD0701">Test NameCode</NameCode>

</CountrySubEntityDetail>

<PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>

<Identification RefDes="CTA0201">Test Identification</Identification>

</DepartmentOrEmployee>

<CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>

</CommunicationContact>

</ContactInformation>

</ShipFromInfo>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

<PartyName RefDes="NAD0401">Test PartyName</PartyName>

<PartyName2 RefDes="NAD0402">Test PartyName2</PartyName2>

<StreetAndNumberOrPostOfficeBox RefDes="NAD0501">Test StreetAndNumberOrPostOfficeBox</StreetAndNumberOrPostOfficeBox>

<CityName RefDes="NAD06">Test CityName</CityName>

<NameCode RefDes="NAD0701">Test NameCode</NameCode>

</CountrySubEntityDetail>

<PostCodeIdentification RefDes="NAD08">Test PostCodeIdentification</PostCodeIdentification>

<Identification RefDes="CTA0201">Test Identification</Identification>

</DepartmentOrEmployee>

<CommunicationAddressIdentifier RefDes="COM0101">Test CommunicationAddressIdentifier</CommunicationAddressIdentifier>

</CommunicationContact>

</ContactInformation>

</FreightForwarderInfo>

<EquipmentId RefDes="EQD0201">Test EquipmentId</EquipmentId>

</EquipmentIdentification>

</EquipmentDetails>

<Level>

<TypeOfPackages RefDes="PAC0402">Test TypeOfPackages</TypeOfPackages>

<TypeOfPackages RefDes="PAC0404">Test TypeOfPackages</TypeOfPackages>

</PackageTypeIdentification>

<MeasurementValue RefDes="MEA0302">Test MeasurementValue</MeasurementValue>

</PackageMeasurement>

<MaximumStackability RefDes="QTY0102" qualifier="QTY0101:171">Test MaximumStackability</MaximumStackability>

<QuantityPerPack RefDes="QTY0102" qualifier="QTY0101:52">Test QuantityPerPack</QuantityPerPack>

</QuantityDetail>

<ShippingMarksDescription RefDes="PCI0201">Test ShippingMarksDescription</ShippingMarksDescription>

<OuterpackagingUnitIdentification RefDes="RFF0102" qualifier="RFF0101:ACI">Test OuterpackagingUnitIdentification</OuterpackagingUnitIdentification>

</Reference>

<ProductionManufactureDate RefDes="DTM0102">Test DateOrTimeOrPeriod</ProductionManufactureDate>

</ProductionManufactureDateInfo>

</ValueList>

<IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>

</MarkingLabelNumber>

<IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>

</KanbanCardIdentifier>

</PackageIdentification>

</PackageInformation>

<Item>

<LineItemNumber RefDes="LIN01">Test LineItemNumber</LineItemNumber>

<BuyerItemNumber RefDes="LIN0301" qualifier="LIN0302:IN">Test BuyerItemNumber</BuyerItemNumber>

<SupplierArticleNumber RefDes="PIA0201" qualifier="PIA0202:SA">Test SupplierArticleNumber</SupplierArticleNumber>

</ItemNumberIdentification>

<EngineeringChangeLevel RefDes="PIA0301" qualifier="PIA0302:EC">Test EngineeringChangeLevel</EngineeringChangeLevel>

</ItemNumberIdentification2>

<BatchNumber RefDes="PIA0401" qualifier="PIA0402:NB">Test BatchNumber</BatchNumber>

</ItemNumberIdentification3>

<SoftwareRevisionNumber RefDes="PIA0501" qualifier="PIA0502:AG">Test SoftwareRevisionNumber</SoftwareRevisionNumber>

</ItemNumberIdentification4>

<TechnicalPhase RefDes="PIA0601" qualifier="PIA0602:BT">Test TechnicalPhase</TechnicalPhase>

</ItemNumberIdentification5>

</AdditionalProductIdentification>

<DespatchQuantity RefDes="QTY0102" qualifier="QTY0101:12">Test DespatchQuantity</DespatchQuantity>

</QuantityDetail>

</AdditionalInformation>

<IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>

</SerialNumber>

<DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>

</ExpiryDateInfo>

<DateOrTimeOrPeriod RefDes="DTM0102">Test DateOrTimeOrPeriod</DateOrTimeOrPeriod>

</ProductionManufactureDateInfo>

<PartyId RefDes="NAD0201">Test PartyId</PartyId>

</ManufacturerOfGoodsInfo>

<PurchaseOrderNumber RefDes="RFF0102" qualifier="RFF0101:ON">Test PurchaseOrderNumber</PurchaseOrderNumber>

<LineNumber RefDes="RFF0103">Test LineNumber</LineNumber>

</Reference>

<InvoiceNumber RefDes="RFF0102" qualifier="RFF0101:IV">Test InvoiceNumber</InvoiceNumber>

</Reference>

<DeliveryScheduleNumber RefDes="RFF0102" qualifier="RFF0101:AAN">Test DeliveryScheduleNumber</DeliveryScheduleNumber>

</Reference>

<EventReferenceNumber RefDes="RFF0102" qualifier="RFF0101:AIV">Test EventReferenceNumber</EventReferenceNumber>

</Reference>

<LocationID RefDes="LOC0201">Test LocationID</LocationID>

</LocationIdentification>

</PlaceOrPortOfDischarge>

<LocationID RefDes="LOC0201">Test LocationID</LocationID>

</LocationIdentification>

</Warehouse>

<LocationID RefDes="LOC0201">Test LocationID</LocationID>

</LocationIdentification>

</AdditionalInternalDestination>

</Item>

<Level>

<TypeOfPackages RefDes="PAC0402">Test TypeOfPackages</TypeOfPackages>

<TypeOfPackages RefDes="PAC0404">Test TypeOfPackages</TypeOfPackages>

</PackageTypeIdentification>

<MeasurementValue RefDes="MEA0302">Test MeasurementValue</MeasurementValue>

</PackageMeasurement>

<MaximumStackability RefDes="QTY0102" qualifier="QTY0101:171">Test MaximumStackability</MaximumStackability>

<NumberofPackagesInHandlingUnit RefDes="QTY0102" qualifier="QTY0101:189">Test NumberofPackagesInHandlingUnit</NumberofPackagesInHandlingUnit>

</QuantityDetail>

<ShippingMarksDescription RefDes="PCI0201">Test ShippingMarksDescription</ShippingMarksDescription>

<IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>

</MarkingLabelNumber>

<IdentityNumber RefDes="GIN0201">Test IdentityNumber</IdentityNumber>

</SerialShippingContainerCode>

</PackageIdentification>

</PackageInformation>

</Level>

</EDI_DESADV>

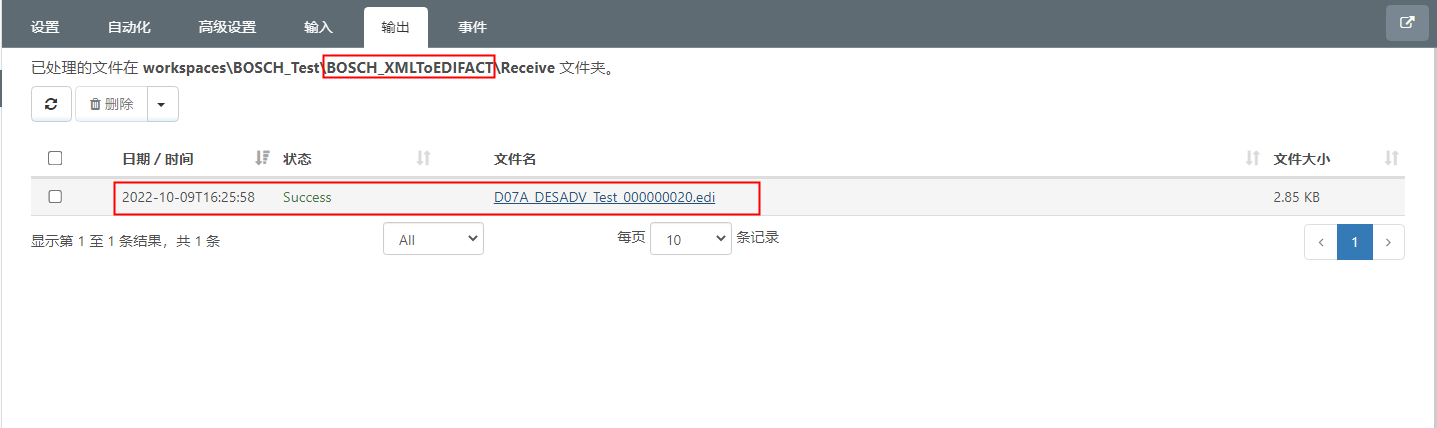

2.通过知行之桥EDI系统，将上述示例XML文件进行格式转换后，得到的博世BOSCH发货通知 DESADV 报文示例如下：

UNA:+.?*'
UNB+UNOC:3+0123456789+BOSCH EDI-TEAM+221009:1422+000000019'
UNH+1+DESADV:D:07A:UN:EAN008'
- 1 = 消息参考号
- DESADV= 报文类型

BGM+351:::KANBAN+Test MessageNumber+9'
- 351= 发货通知限定符
- KANBAN= 与DELJIT相关的发货通知
- Test MessageNumber = 发货编号
- 9 = 原始文件

DTM+137:Test DateOrTimeOrPeriod:102'
- 137= 文件日期限定符
- Test DateOrTimeOrPeriod = 文件日期
- 102 = 日期格式编码

DTM+132:Test DateOrTimeOrPeriod:102'
- 132 = 预计运输抵达日期限定符
- Test DateOrTimeOrPeriod = 预计运输抵达日期
- 102 = 日期格式编码

DTM+10:Test DateOrTimeOrPeriod:102'
- 10 = 指定的运输日期限定符
- Test DateOrTimeOrPeriod = 指定的运输日期
- 102 = 日期格式编码

MEA+AAX+AAD+KGM:Test MeasurementValue'
- AAX = 寄售测量限定符
- AAD = 托运总重量限定符
- KGM = 千克
- Test MeasurementValue = 测量值

RFF+AAS:Test TransportContractDocumentIdentifier'
- AAS = 运输合同文件限定符
- Test TransportContractDocumentIdentifie = 运输合同文件ID

RFF+AVU:Test UniqueGoodsShipmentIdentifier'
- AVU = 独特的货物运输限定符
- Test UniqueGoodsShipmentIdentifier = 独特的货物运输ID

RFF+AHI:Test TransportContractReferenceNumber'
- AHI = 运输合同参考号限定符
- Test TransportContractReferenceNumber = 运输合同参考号

NAD+BY+Test PartyId::91++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'
- BY = 买方限定符
- Test PartyId = 买方ID
- 91 = 由卖方指定
- Test PartyName = 买方名称
- Test PartyName2 = 买方名称2
- Test StreetAndNumberOrPostOfficeBox = 买方街道
- Test CityName = 买方城市名
- Test NameCode = 买方城市详细信息
- Test PostCodeIdentification = 买方邮编
- DE =买方国家ID

CTA+IC+Test Identification:Test Name'
- IC = 买方联系信息限定符
- Test Identification = 买方联系ID
- Test Name =买方联系姓名

COM+Test CommunicationAddressIdentifier:TE'
- Test CommunicationAddressIdentifier = 买方联系地址ID
- TE = 电话

NAD+SE+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'
- SE = 卖方限定符
- Test PartyId = 卖方ID
- 92 = 由买方指定
- Test PartyName = 卖方名称
- Test PartyName2 = 卖方名称2
- Test StreetAndNumberOrPostOfficeBox = 卖方街道
- Test CityName = 卖方城市名
- Test NameCode= 卖方国家或地区细分
- Test PostCodeIdentification = 卖方邮编
- DE = 卖方国家代码

CTA+IC+Test Identification:Test Name'
- IC= 卖方联系信息限定符
- Test Identification = 卖方联系ID
- Test Name = 卖方联系姓名

COM+Test CommunicationAddressIdentifier:TE'
- Test CommunicationAddressIdentifier = 卖方联系信息ID
- TE = 电话

NAD+SU+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'
- SU = 供应商限定符
- Test PartyId = 供应商ID
- 92 = 由买方指定
- Test PartyName = 供应商名称
- Test PartyName2 = 供应商名称2
- Test StreetAndNumberOrPostOfficeBox = 供应商街道
- Test CityName = 供应商城市名
- Test NameCode= 供应商国家或地区细分
- Test PostCodeIdentification = 供应商邮编
- DE = 供应商国家代码

CTA+IC+Test Identification:Test Name'
- IC= 供应商联系信息限定符
- Test Identification = 供应商联系ID
- Test Name = 供应商联系姓名

COM+Test CommunicationAddressIdentifier:TE'
- Test CommunicationAddressIdentifier = 供应商联系信息ID
- TE = 电话

NAD+ST+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'
- ST = 收货方限定符
- Test PartyId = 收货方ID
- 92 = 由买方指定
- Test PartyName = 收货方名称
- Test PartyName2 = 收货方名称2
- Test StreetAndNumberOrPostOfficeBox = 收货方街道
- Test CityName = 收货方城市名
- Test NameCode= 收货方国家或地区细分
- Test PostCodeIdentification = 收货方邮编
- DE = 收货方国家代码

LOC+11+Test LocationID'
- Test LocationID = 卸货点地址ID

CTA+IC+Test Identification:Test Name'
- IC= 收货方联系信息限定符
- Test Identification = 收货方联系ID
- Test Name = 收货方联系姓名

COM+Test CommunicationAddressIdentifier:TE'
- Test CommunicationAddressIdentifier = 收货方联系信息ID
- TE = 电话

NAD+SF+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'
- SF = 发货限定符
- Test PartyId = 发货ID
- 92 = 由买方指定
- Test PartyName = 发货名称
- Test PartyName2 = 发货名称2
- Test StreetAndNumberOrPostOfficeBox = 发货街道
- Test CityName = 发货城市名
- Test NameCode= 发货国家或地区细分
- Test PostCodeIdentification = 发货邮编
- DE = 发货国家代码

CTA+IC+Test Identification:Test Name'
- IC= 发货方联系信息限定符
- Test Identification = 发货方联系ID
- Test Name = 发货方联系姓名

COM+Test CommunicationAddressIdentifier:TE'
- Test CommunicationAddressIdentifier = 发货方联系信息ID
- TE = 电话

NAD+FW+Test PartyId++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'
- FW= 货运转运商限定符
- Test PartyId = 货运转运商ID
- 92 = 由货运转运商指定
- Test PartyName = 货运转运商名称
- Test PartyName2 = 货运转运商名称2
- Test StreetAndNumberOrPostOfficeBox = 货运转运商街道
- Test CityName = 货运转运商城市名
- Test NameCode= 货运转运商国家或地区细分
- Test PostCodeIdentification = 货运转运商邮编
- DE = 货运转运商国家代码

CTA+IC+Test Identification:Test Name'
- IC= 货运转运商联系信息限定符
- Test Identification = 货运转运商联系ID
- Test Name = 货运转运商联系姓名

COM+Test CommunicationAddressIdentifier:TE'
- Test CommunicationAddressIdentifier = 货运转运商联系信息ID
- TE = 电话

EQD+TE+Test EquipmentId'
- TE= 拖车
- Test EquipmentId = 装运ID

CPS+1++1'
- 1= 包装水平限定符
- 1 = 包装水平，内包装

PAC+123456+++F:Test TypeOfPackages:IN:Test TypeOfPackages:SA'
- 123456 = 包装编号
- F = 包装类型编码，F：自由格式
- Test TypeOfPackages = 买方包装类型编码
- IN = 物料类型编码，IN：买方物料编号
- Test TypeOfPackages = 供应商包装类型编码
- SA = 供应商货号编码

MEA+AAY+G+KGM:Test MeasurementValue'
- AAY = 测量限定符
- G = 毛重
- KGM = 千克
- Test MeasurementValue = 测量值

QTY+171:Test MaximumStackability:EA'
- 171 = 买方包装类型编码
- Test MaximumStackability = 最大可堆叠数量
- EA = 测量单位：每个

PCI+17+Test ShippingMarksDescription++G::5'
- 17 = 卖方说明限定符
- Test ShippingMarksDescription = 卖方运输说明
- G = 标记类型编码
- 5 = ISO国际标准化组织

RFF+ACI: Test OuterpackagingUnitIdentification'
- ACI= 外包装限定符
- Test OuterpackagingUnitIdentification = 外包装ID

DTM+94:Test DateOrTimeOrPeriod:102'
- 94 = 生产日期限定符
- Test DateOrTimeOrPeriod= 生产日期
- 102 = 日期格式

GIR+7+1:AM'
- 7= 类型标识符
- 1 = 最小包装
- AM = 水平编号限定符

GIN+ML+Test IdentityNumber'
- ML = 标签号限定符
- Test IdentityNumber = 标签号

GIN+AL+Test IdentityNumber'
- AL = 看板卡号限定符
- Test IdentityNumber = 看板卡号

LIN+Test LineItemNumber++Test BuyerItemNumber:IN'
- Test LineItemNumber = 物料行号
- Test BuyerItemNumber = 买方物料号
- IN = 买方物料号限定符

PIA+1+Test SupplierArticleNumber:SA+Test EngineeringChangeLevel:EC+Test BatchNumber:NB+Test SoftwareRevisionNumber:AG+Test TechnicalPhase:BT'
- 1 = 看板卡号限定符
- Test SupplierArticleNumber = 供应商货号
- SA = 供应商货号限定符
- Test EngineeringChangeLevel= 工程修改级别限定符
- EC = 工程修改级别
- Test BatchNumber= 批号
- NB = 批号限定符
- Test SoftwareRevisionNumber = 软件修正号
- AG = 软件修正号限定符
- Test TechnicalPhase = 硬件修正号
- BT = 硬件修正号限定符


QTY+12:Test DespatchQuantity:EA'
- 12 = 发货数量限定符
- Test DespatchQuantity = 发货数量
- EA = 测量单位，每个

ALI+DE'
- DE = 原产国

GIN+BN+Test IdentityNumber'
- BN = 序列号限定符
- Test IdentityNumber = 序列号

DTM+36:Test DateOrTimeOrPeriod:102'
- 36 = 限用日期限定符
- Test DateOrTimeOrPeriod = 限用日期
- 102= 日期格式限定符

DTM+94:Test DateOrTimeOrPeriod:102'
- 94 = 生产/制造日期限定符
- Test DateOrTimeOrPeriod = 生产/制造日期
- 102= 日期格式限定符

NAD+MF+Test PartyId'
- MF = 货物制造商限定符
- Test PartyId = 货物制造商ID

RFF+ON:Test PurchaseOrderNumber:Test LineNumber'
- ON = 订单编号限定符
- Test PurchaseOrderNumber = 订单编号
- Test LineNumber = 物料行号

RFF+IV: Test InvoiceNumber'
- IV = 发票号限定符
- Test InvoiceNumber = 发票号

RFF+AAN:Test DeliveryScheduleNumber'
- AAN = 交付计划编号限定符
- Test DeliveryScheduleNumber = 交付计划编号

RFF+AIV:Test EventReferenceNumber'
- AIV: = 事件参考号限定符
- Test EventReferenceNumber = 事件参考号

LOC+11+Test LocationID'
- 11 = 卸货地限定符
- Test LocationID = 卸货地ID

LOC+18+Test LocationID'
- 18 = 仓库位置限定符
- Test LocationID = 仓库位置ID

LOC+159+Test LocationID'
- 159 = 额外的内部目的地限定符
- Test LocationID = 额外的内部目的地ID

CPS+2++2'
- 2 = 包装水平限定符
- 2 = 包装水平：中层

PAC+123456+++F:Test TypeOfPackages:IN:Test TypeOfPackages:SA'
- 123456 = 包装号
- F = 自由格式限定符
- Test TypeOfPackages = 包装类型
- IN = 买方物料号限定符
- Test TypeOfPackages = 包装类型
- SA = 供应商产品编号

MEA+AAY+G+KGM:Test MeasurementValue'
- AAY= 包装测量限定符
- G = 毛重
- KGM = 千克
- Test MeasurementValue = 测量值

QTY+171:Test MaximumStackability'
- 171= 最大堆积量限定符
- Test MaximumStackability= 最大堆积量

PCI+17+Test ShippingMarksDescription++G::5'
- 17 = 卖方说明限定符
- Test ShippingMarksDescription = 卖方运输说明
- G = 混拖
- 5 = ISO国际标准化组织

GIN+ML+Test IdentityNumber'
- ML = 标签号
- Test IdentityNumber = 标签号

GIN+AW+Test IdentityNumber'
- AW = 外包装中包含的包件限定符
- Test IdentityNumber = 外包装中包含的包件的ID

UNT+57+1'
UNZ+1+000000019'

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

UNA:+.?*'

UNB+UNOC:3+0123456789+BOSCH EDI-TEAM+221009:1422+000000019'

UNH+1+DESADV:D:07A:UN:EAN008'

- 1 = 消息参考号

- DESADV= 报文类型

BGM+351:::KANBAN+Test MessageNumber+9'

- 351= 发货通知限定符

- KANBAN= 与DELJIT相关的发货通知

- Test MessageNumber = 发货编号

- 9 = 原始文件

DTM+137:Test DateOrTimeOrPeriod:102'

- 137= 文件日期限定符

- Test DateOrTimeOrPeriod = 文件日期

- 102 = 日期格式编码

DTM+132:Test DateOrTimeOrPeriod:102'

- 132 = 预计运输抵达日期限定符

- Test DateOrTimeOrPeriod = 预计运输抵达日期

- 102 = 日期格式编码

DTM+10:Test DateOrTimeOrPeriod:102'

- 10 = 指定的运输日期限定符

- Test DateOrTimeOrPeriod = 指定的运输日期

- 102 = 日期格式编码

MEA+AAX+AAD+KGM:Test MeasurementValue'

- AAX = 寄售测量限定符

- AAD = 托运总重量限定符

- KGM = 千克

- Test MeasurementValue = 测量值

RFF+AAS:Test TransportContractDocumentIdentifier'

- AAS = 运输合同文件限定符

- Test TransportContractDocumentIdentifie = 运输合同文件ID

RFF+AVU:Test UniqueGoodsShipmentIdentifier'

- AVU = 独特的货物运输限定符

- Test UniqueGoodsShipmentIdentifier = 独特的货物运输ID

RFF+AHI:Test TransportContractReferenceNumber'

- AHI = 运输合同参考号限定符

- Test TransportContractReferenceNumber = 运输合同参考号

NAD+BY+Test PartyId::91++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'

- BY = 买方限定符

- Test PartyId = 买方ID

- 91 = 由卖方指定

- Test PartyName = 买方名称

- Test PartyName2 = 买方名称2

- Test StreetAndNumberOrPostOfficeBox = 买方街道

- Test CityName = 买方城市名

- Test NameCode = 买方城市详细信息

- Test PostCodeIdentification = 买方邮编

- DE =买方国家ID

CTA+IC+Test Identification:Test Name'

- IC = 买方联系信息限定符

- Test Identification = 买方联系ID

- Test Name =买方联系姓名

COM+Test CommunicationAddressIdentifier:TE'

- Test CommunicationAddressIdentifier = 买方联系地址ID

- TE = 电话

NAD+SE+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'

- SE = 卖方限定符

- Test PartyId = 卖方ID

- 92 = 由买方指定

- Test PartyName = 卖方名称

- Test PartyName2 = 卖方名称2

- Test StreetAndNumberOrPostOfficeBox = 卖方街道

- Test CityName = 卖方城市名

- Test NameCode= 卖方国家或地区细分

- Test PostCodeIdentification = 卖方邮编

- DE = 卖方国家代码

CTA+IC+Test Identification:Test Name'

- IC= 卖方联系信息限定符

- Test Identification = 卖方联系ID

- Test Name = 卖方联系姓名

COM+Test CommunicationAddressIdentifier:TE'

- Test CommunicationAddressIdentifier = 卖方联系信息ID

- TE = 电话

NAD+SU+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'

- SU = 供应商限定符

- Test PartyId = 供应商ID

- 92 = 由买方指定

- Test PartyName = 供应商名称

- Test PartyName2 = 供应商名称2

- Test StreetAndNumberOrPostOfficeBox = 供应商街道

- Test CityName = 供应商城市名

- Test NameCode= 供应商国家或地区细分

- Test PostCodeIdentification = 供应商邮编

- DE = 供应商国家代码

CTA+IC+Test Identification:Test Name'

- IC= 供应商联系信息限定符

- Test Identification = 供应商联系ID

- Test Name = 供应商联系姓名

COM+Test CommunicationAddressIdentifier:TE'

- Test CommunicationAddressIdentifier = 供应商联系信息ID

- TE = 电话

NAD+ST+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'

- ST = 收货方限定符

- Test PartyId = 收货方ID

- 92 = 由买方指定

- Test PartyName = 收货方名称

- Test PartyName2 = 收货方名称2

- Test StreetAndNumberOrPostOfficeBox = 收货方街道

- Test CityName = 收货方城市名

- Test NameCode= 收货方国家或地区细分

- Test PostCodeIdentification = 收货方邮编

- DE = 收货方国家代码

LOC+11+Test LocationID'

- Test LocationID = 卸货点地址ID

CTA+IC+Test Identification:Test Name'

- IC= 收货方联系信息限定符

- Test Identification = 收货方联系ID

- Test Name = 收货方联系姓名

COM+Test CommunicationAddressIdentifier:TE'

- Test CommunicationAddressIdentifier = 收货方联系信息ID

- TE = 电话

NAD+SF+Test PartyId::92++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'

- SF = 发货限定符

- Test PartyId = 发货ID

- 92 = 由买方指定

- Test PartyName = 发货名称

- Test PartyName2 = 发货名称2

- Test StreetAndNumberOrPostOfficeBox = 发货街道

- Test CityName = 发货城市名

- Test NameCode= 发货国家或地区细分

- Test PostCodeIdentification = 发货邮编

- DE = 发货国家代码

CTA+IC+Test Identification:Test Name'

- IC= 发货方联系信息限定符

- Test Identification = 发货方联系ID

- Test Name = 发货方联系姓名

COM+Test CommunicationAddressIdentifier:TE'

- Test CommunicationAddressIdentifier = 发货方联系信息ID

- TE = 电话

NAD+FW+Test PartyId++Test PartyName:Test PartyName2+Test StreetAndNumberOrPostOfficeBox+Test CityName+Test NameCode+Test PostCodeIdentification+DE'

- FW= 货运转运商限定符

- Test PartyId = 货运转运商ID

- 92 = 由货运转运商指定

- Test PartyName = 货运转运商名称

- Test PartyName2 = 货运转运商名称2

- Test StreetAndNumberOrPostOfficeBox = 货运转运商街道

- Test CityName = 货运转运商城市名

- Test NameCode= 货运转运商国家或地区细分

- Test PostCodeIdentification = 货运转运商邮编

- DE = 货运转运商国家代码

CTA+IC+Test Identification:Test Name'

- IC= 货运转运商联系信息限定符

- Test Identification = 货运转运商联系ID

- Test Name = 货运转运商联系姓名

COM+Test CommunicationAddressIdentifier:TE'

- Test CommunicationAddressIdentifier = 货运转运商联系信息ID

- TE = 电话

EQD+TE+Test EquipmentId'

- TE= 拖车

- Test EquipmentId = 装运ID

CPS+1++1'

- 1= 包装水平限定符

- 1 = 包装水平，内包装

PAC+123456+++F:Test TypeOfPackages:IN:Test TypeOfPackages:SA'

- 123456 = 包装编号

- F = 包装类型编码，F：自由格式

- Test TypeOfPackages = 买方包装类型编码

- IN = 物料类型编码，IN：买方物料编号

- Test TypeOfPackages = 供应商包装类型编码

- SA = 供应商货号编码

MEA+AAY+G+KGM:Test MeasurementValue'

- AAY = 测量限定符

- G = 毛重

- KGM = 千克

- Test MeasurementValue = 测量值

QTY+171:Test MaximumStackability:EA'

- 171 = 买方包装类型编码

- Test MaximumStackability = 最大可堆叠数量

- EA = 测量单位：每个

PCI+17+Test ShippingMarksDescription++G::5'

- 17 = 卖方说明限定符

- Test ShippingMarksDescription = 卖方运输说明

- G = 标记类型编码

- 5 = ISO国际标准化组织

RFF+ACI: Test OuterpackagingUnitIdentification'

- ACI= 外包装限定符

- Test OuterpackagingUnitIdentification = 外包装ID

DTM+94:Test DateOrTimeOrPeriod:102'

- 94 = 生产日期限定符

- Test DateOrTimeOrPeriod= 生产日期

- 102 = 日期格式

GIR+7+1:AM'

- 7= 类型标识符

- 1 = 最小包装

- AM = 水平编号限定符

GIN+ML+Test IdentityNumber'

- ML = 标签号限定符

- Test IdentityNumber = 标签号

GIN+AL+Test IdentityNumber'

- AL = 看板卡号限定符

- Test IdentityNumber = 看板卡号

LIN+Test LineItemNumber++Test BuyerItemNumber:IN'

- Test LineItemNumber = 物料行号

- Test BuyerItemNumber = 买方物料号

- IN = 买方物料号限定符

PIA+1+Test SupplierArticleNumber:SA+Test EngineeringChangeLevel:EC+Test BatchNumber:NB+Test SoftwareRevisionNumber:AG+Test TechnicalPhase:BT'

- 1 = 看板卡号限定符

- Test SupplierArticleNumber = 供应商货号

- SA = 供应商货号限定符

- Test EngineeringChangeLevel= 工程修改级别限定符

- EC = 工程修改级别

- Test BatchNumber= 批号

- NB = 批号限定符

- Test SoftwareRevisionNumber = 软件修正号

- AG = 软件修正号限定符

- Test TechnicalPhase = 硬件修正号

- BT = 硬件修正号限定符

QTY+12:Test DespatchQuantity:EA'

- 12 = 发货数量限定符

- Test DespatchQuantity = 发货数量

- EA = 测量单位，每个

ALI+DE'

- DE = 原产国

GIN+BN+Test IdentityNumber'

- BN = 序列号限定符

- Test IdentityNumber = 序列号

DTM+36:Test DateOrTimeOrPeriod:102'

- 36 = 限用日期限定符

- Test DateOrTimeOrPeriod = 限用日期

- 102= 日期格式限定符

DTM+94:Test DateOrTimeOrPeriod:102'

- 94 = 生产/制造日期限定符

- Test DateOrTimeOrPeriod = 生产/制造日期

- 102= 日期格式限定符

NAD+MF+Test PartyId'

- MF = 货物制造商限定符

- Test PartyId = 货物制造商ID

RFF+ON:Test PurchaseOrderNumber:Test LineNumber'

- ON = 订单编号限定符

- Test PurchaseOrderNumber = 订单编号

- Test LineNumber = 物料行号

RFF+IV: Test InvoiceNumber'

- IV = 发票号限定符

- Test InvoiceNumber = 发票号

RFF+AAN:Test DeliveryScheduleNumber'

- AAN = 交付计划编号限定符

- Test DeliveryScheduleNumber = 交付计划编号

RFF+AIV:Test EventReferenceNumber'

- AIV: = 事件参考号限定符

- Test EventReferenceNumber = 事件参考号

LOC+11+Test LocationID'

- 11 = 卸货地限定符

- Test LocationID = 卸货地ID

LOC+18+Test LocationID'

- 18 = 仓库位置限定符

- Test LocationID = 仓库位置ID

LOC+159+Test LocationID'

- 159 = 额外的内部目的地限定符

- Test LocationID = 额外的内部目的地ID

CPS+2++2'

- 2 = 包装水平限定符

- 2 = 包装水平：中层

PAC+123456+++F:Test TypeOfPackages:IN:Test TypeOfPackages:SA'

- 123456 = 包装号

- F = 自由格式限定符

- Test TypeOfPackages = 包装类型

- IN = 买方物料号限定符

- Test TypeOfPackages = 包装类型

- SA = 供应商产品编号

MEA+AAY+G+KGM:Test MeasurementValue'

- AAY= 包装测量限定符

- G = 毛重

- KGM = 千克

- Test MeasurementValue = 测量值

QTY+171:Test MaximumStackability'

- 171= 最大堆积量限定符

- Test MaximumStackability= 最大堆积量

PCI+17+Test ShippingMarksDescription++G::5'

- 17 = 卖方说明限定符

- Test ShippingMarksDescription = 卖方运输说明

- G = 混拖

- 5 = ISO国际标准化组织

GIN+ML+Test IdentityNumber'

- ML = 标签号

- Test IdentityNumber = 标签号

GIN+AW+Test IdentityNumber'

- AW = 外包装中包含的包件限定符

- Test IdentityNumber = 外包装中包含的包件的ID

UNT+57+1'

UNZ+1+000000019'

工作流示例

通过上述的讲解想必大家已经了解了 BOSCH DESADV发货通知在知行之桥 EDI 系统中的转换结果了，以下是上述工作流示例，您可以下载知行之桥EDI系统，导入【示例工作流】以及【BOSCH_DESADV_Test】，进行实战操作。

下载博世 BOSCH DESADV 工作流以及测试文件

在知行之桥 EDI 系统中导入上述工作流以及测试文件。

①先点击右上角的工作区齿轮图标，选择创建工作区，命名为BOSCH_Test。

②然后选择导入工作区，选择BOSCH_Test.arcflow。

③点开BOSCH_XMLMap_DESADV 端口，点击上方输入，在更多里点击上传文件，上传 DESADV_TEST.xml。

④点开BOSCH_XMLToEDIFACT端口，点击上方输出，点击 D07A_DESADV_Test_000000020.edi即可下载文件，看到转换后的结果。

更多 EDI 信息，请参阅: EDI 是什么？

免费试用

注：文案部分图片及内容来源于网络，版权归原创作者所有，如有侵犯到您的权益，请您联系我们进行删除，给您带来困扰，我们深感抱歉。

标签： DESADV发货通知, EDI, EDIFACT, 博世BOSCH, 电子数据交换, 知行之桥, 知行软件EDI
文章分类帮助文档, 知识库

177-8250-8152 / sales@kasoftware.cn

博世BOSCH EDI DESADV发货通知详解

工作流示例

文章分类

最新发布

知行软件 | EDI通信专家
